Getting Started With Kubernetes Operators (Ansible Based) - Part 2

Akash Gautam

Cloud & DevOps

Introduction

In the first part of this blog series, getting started with Kubernetes operators (Helm based), we learned the basics of operators and build a Helm based operator. In this blog post, we will try out an Ansible-based operator. Ansible is a very popular tool used by organizations across the globe for configuration management, deployment, and automation of other operational tasks, this makes Ansible an ideal tool to build operators as with operators also we intend to eliminate/minimize the manual interventions required while running/managing our applications on Kubernetes. Ansible based operators allow us to use Ansible playbooks and roles to manage our application on Kubernetes.

Operator Maturity Model

Image source:  Github

Image source: Github

Before we start building the operator let’s spend some time in understanding the operator maturity model. Operator maturity model gives an idea of the kind of application management capabilities different types of operators can have. As we can see in the diagram above the model describes five generic phases of maturity/capability for operators. The minimum expectation/requirement from an operator is that they should be able to deploy/install and upgrade application and that is provided by all the operators. Helm based operators are simplest of all of them as Helm is Chart manager and we can do only install and upgrades using it. Ansible based operators can be more mature as Ansible has modules to perform a wide variety of operational tasks, we can use these modules in the Ansible roles/playbooks we use in our operator and make them handle more complex applications or use cases. In the case of Golang based operators, we write the operational logic ourselves so we have the liberty to customize it as per our requirements.

Building an Ansible Based Operator

1. Let’s first install the operator sdk

CODE: https://gist.github.com/velotiotech/c3961fd21c83f218284b6adba75cbd35.js

Now we will have the operator-sdk binary in the $GOPATH/bin folder.

2.  Setup the project

Operator-sdk new bookstore-operator--api-version=blog.velotio.com/v1alpha1--kind=BookStore--type=ansible

In the above command we have set the operator type as ansible as we want an ansible based operator. It creates a folder structure as shown below

CODE: https://gist.github.com/velotiotech/b942ac1b89eb6e7428c18c886282c6e8.js

Inside the roles folder, it creates an Ansible role name `bookstore`. This role is bootstrapped with all the directories and files which are part of the standard ansible roles.

Now let’s take a look at the watches.yaml file:

CODE: https://gist.github.com/velotiotech/afe80644ef3050aec576a0cfa9c967d6.js

Here we can see that it looks just like the operator is going to watch the events related to the objects of BookStore kind and execute the ansible role bookstore.  Drawing parallels from our helm based operator we can see that the behavior in both the cases are similar the only difference being that in case of Helm based operator the operator used to execute the helm chart specified in response to the events related to the object it was watching and here we are executing an ansible role.

In case of ansible based operators, we can get the operator to execute an Ansible playbook as well rather than an ansible role.

3.  Building the bookstore Ansible role

Now we need to modify the bookstore Ansible roles created for us by the operator-framework.

First we will update the custom resource (CR) file ( blog_v1alpha1_bookstore_cr.yaml) available at deploy/crd/ location. In this CR we can configure all the values which we want to pass to the bookstore Ansible role. By default the CR contains only the size field, we will update it to include other field which we need in our role.  To keep things simple, we will just include some basic variables like image name, tag etc. in our spec.

CODE: https://gist.github.com/velotiotech/182b926d60a95a616735a4c092b0aa01.js

The Ansible operator passes the key values pairs listed in the spec of the cr as variables to Ansible.  The operator changes the name of the variables to snake_case before running Ansible so when we use the variables in our role we will refer the values in snake case.

Next, we need to create the tasks the bookstore roles will execute. Now we will update the tasks to define our deployment. By default an Ansible role executes the tasks defined at `/tasks/main.yml`. For defining our deployment we will leverage k8s module of Ansible. We will create a kubernetes deployment and service for our app as well as mongodb.

CODE: https://gist.github.com/velotiotech/187032025d595c19ea4d32cb80a4066a.js

In the above file we can see that we have used the pullPolicy field defined in our cr spec as ‘pull_policy’ in our tasks. Here we have used inline definition to create our k8s objects as our app is quite simple. For large applications creating objects using separate definition files would be a better approach.

4 . Build the bookstore-operator image

The Dockerfile for building the operator image is already in our build folder we need to run the below command from the root folder of our operator project to build the image.

‘operator-sdk build akash125/bookstore-operator:ansible’

You can use your own docker repository instead of ‘akash125/bookstore-operator’

5. Run the bookstore-operator

As we have our operator image ready we can now go ahead and run it. The deployment file (operator.yaml under deploy folder) for the operator was created as a part of our project setup we just need to set the image for this deployment to the one we built in the previous step.

After updating the image in the operator.yaml we are ready to deploy the operator.

CODE: https://gist.github.com/velotiotech/8422da55b1fed7bc6e3f56d5dff7aae2.js

Note: The role created might have more permissions then actually required for the operator so it is always a good idea to review it and trim down the permissions in production setups.

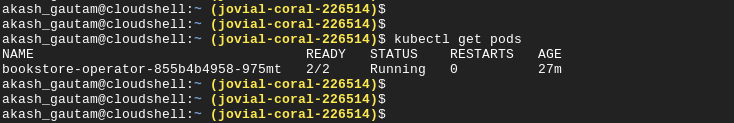

Verify that the operator pod is in running state.

Kubernetes Operator 2.png

Here two containers have been started as part of the operator deployment. One is the operator and the other one is ansible. The ansible pod exists only to make the logs available to stdout in ansible format.

6. Deploy the bookstore app

Now we have the bookstore-operator running in our cluster we just need to create the custom resource for deploying our bookstore app.

First, we can create bookstore cr we need to register its crd

‘kubectl delete -f deploy/crds/blog_v1alpha1_bookstore_crd.yaml’

Now we can create the bookstore object

‘kubectl delete -f deploy/crds/blog_v1alpha1_bookstore_cr.yaml’

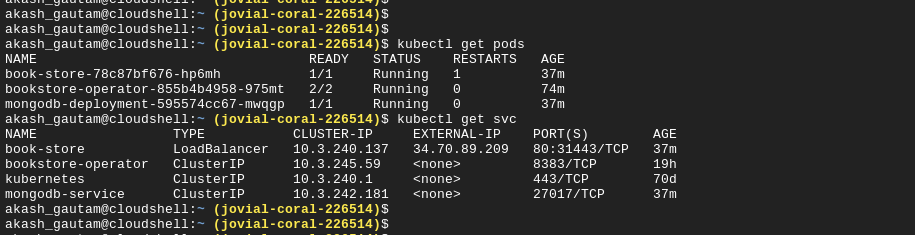

Now we can see that our operator has deployed out book-store app:

Kubernetes Operator 3.png

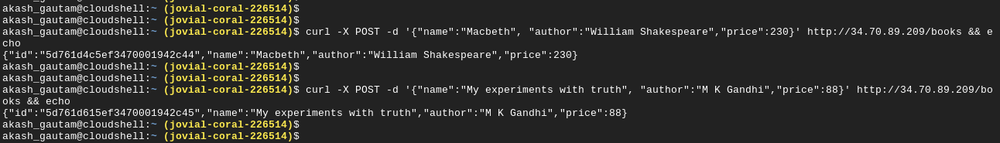

Now let’s grab the external IP of the app and make some requests to store details of books.

Kubernetes Operator 4.png

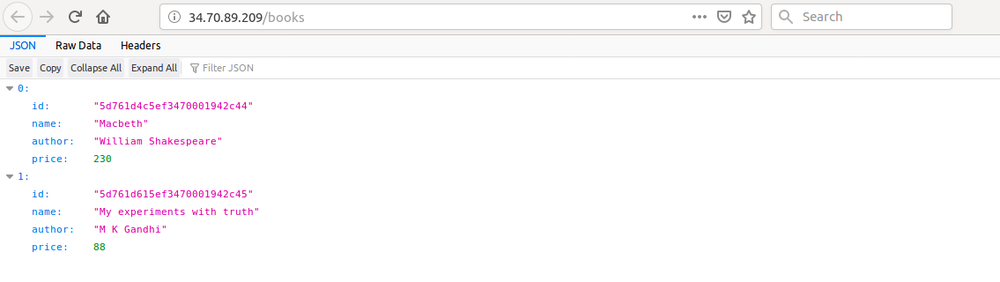

Let’s hit the external IP on the browser and see if it lists the books we just stored:

Kubernetes Operator 5.png

We can see that our ‘book-store’ app is up and running.

The operator build is available here.

Conclusion

In this blog post, we learned how we can create an Ansible based operator using the operator framework. Ansible based operators are a great way to combine the power of Ansible and Kubernetes as it allows us to deploy our applications using Ansible role and playbooks and we can pass parameters to them (control them) using custom K8s resources. If Ansible is being heavily used across your organization and you are migrating to Kubernetes then Ansible based operators are an ideal choice for managing deployments. In the next blog, we will learn about Golang based operators.
